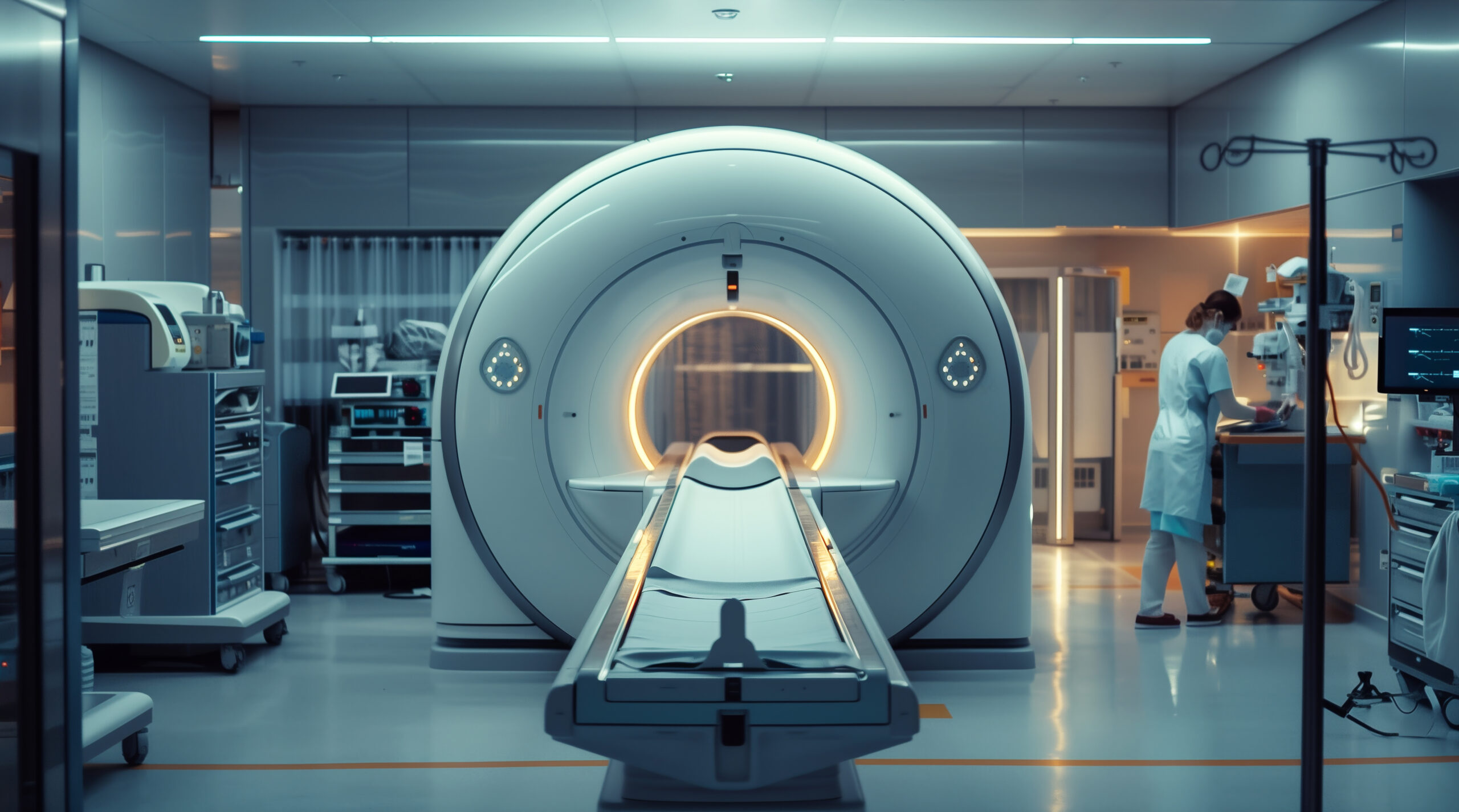

MRI RF Power Amplifiers
Systems & Modules
RF Power Amplifiers
For Defense Applications
High-Performance RF Power
for Industrial & Scientific Systems
Trusted By Mission-Critical RF Programs Worldwide
Engineered RF Power for Demanding Missions
10 kHz–32 GHz, 10 W to >100 kW — ruggedized amplifiers engineered for application-specific reliability across defense, aerospace, medical, scientific, and industrial systems.
Application-Specific Solutions
CPC Capabilities
RF Performance
Frequency Range 10 kHz–32 GHz
Output Power 10 W to >100 kW
Waveform Support AM, FM, CW, Digital, Pulse
System Integration

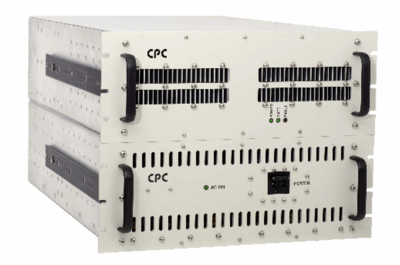

Rugged Form Factors Module, Chassis, Rack-Mount
Smart Interfaces Serial, Parallel, Ethernet, Custom
Thermal Management Convection, forced-air, liquid, heat-pipe.
Featured Products

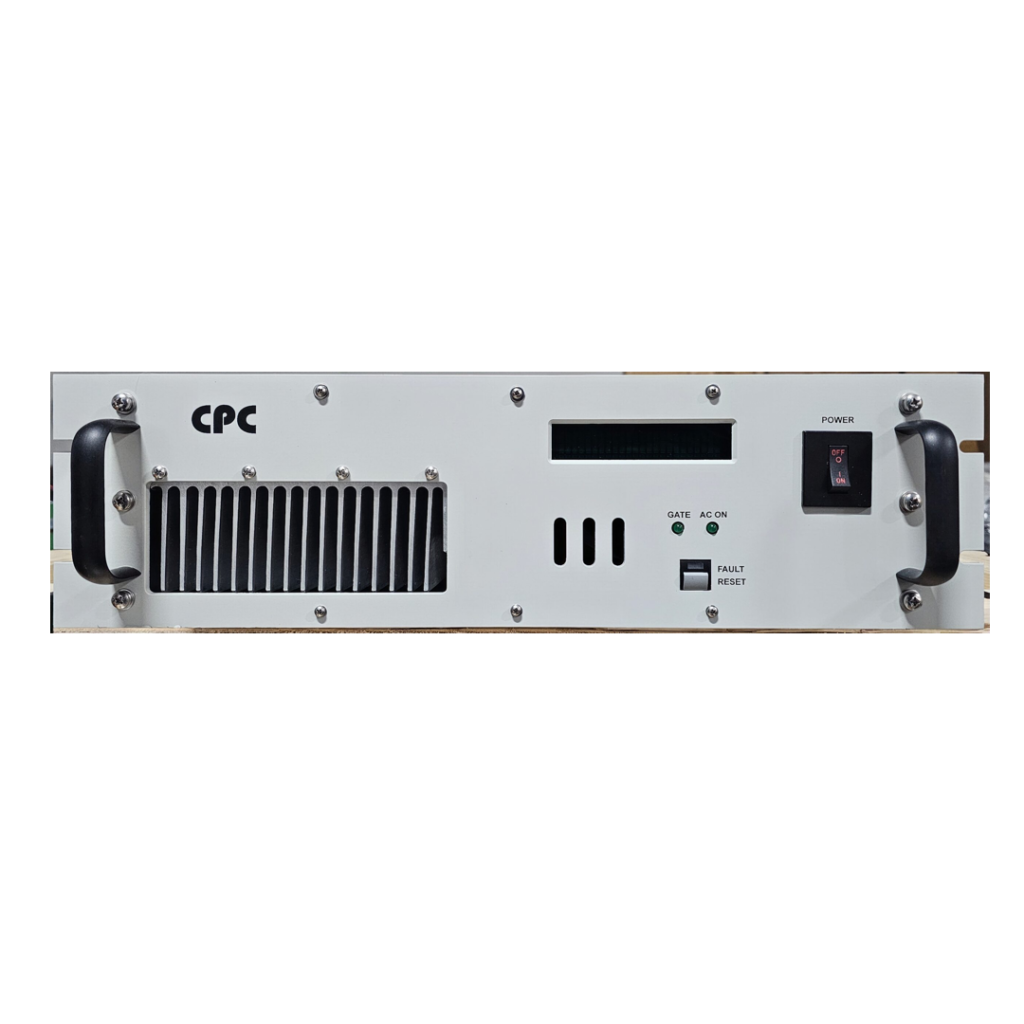

High Performance for MRI and NMR Applications
CPC delivers high-power performance with the 3T4KP Pulsed RF Amplifier. Designed for demanding NMR and MRI applications, the unit provides 4 kW Peak Output Power in the 125 to 130 MHz frequency range and supports Pulse Widths of 20 ms.
The 3T4KP features CPC’s comprehensive interface and robust fault protection to ensure seamless integration in the system. Reliable performance in critical environments is built in with superior attention to engineering detail.
Frequency Range: 125-130 MHz
Power Output: 4000 W
Pulsed Operation

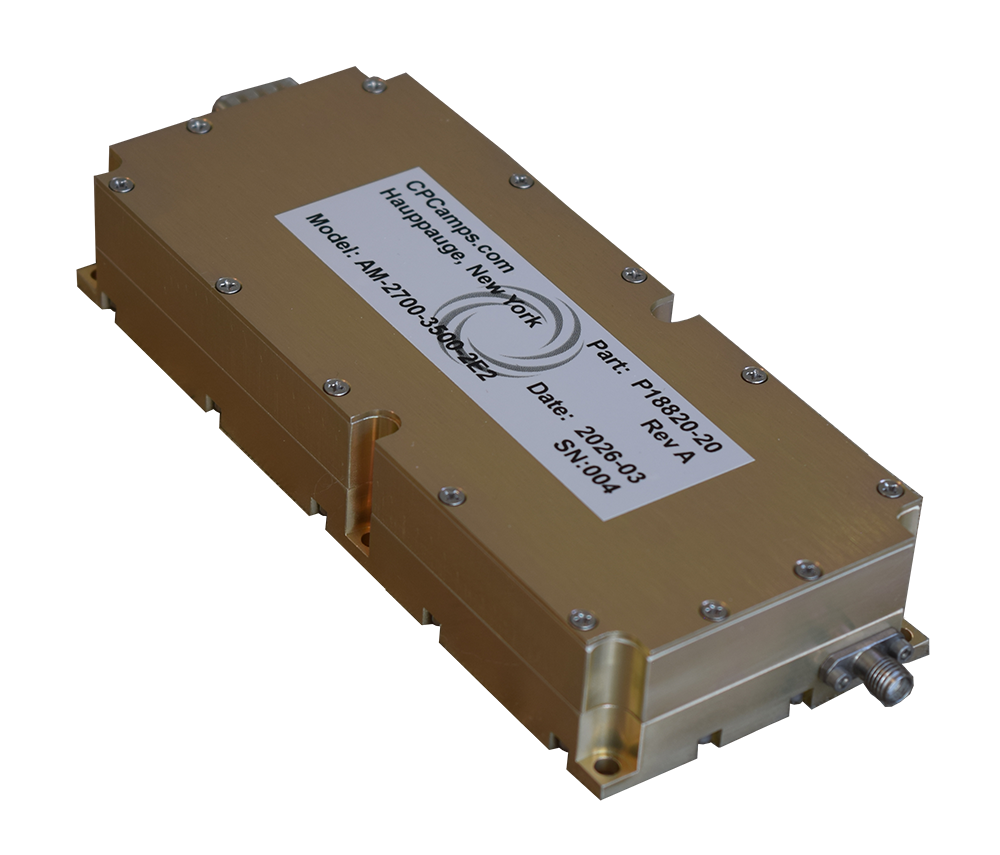

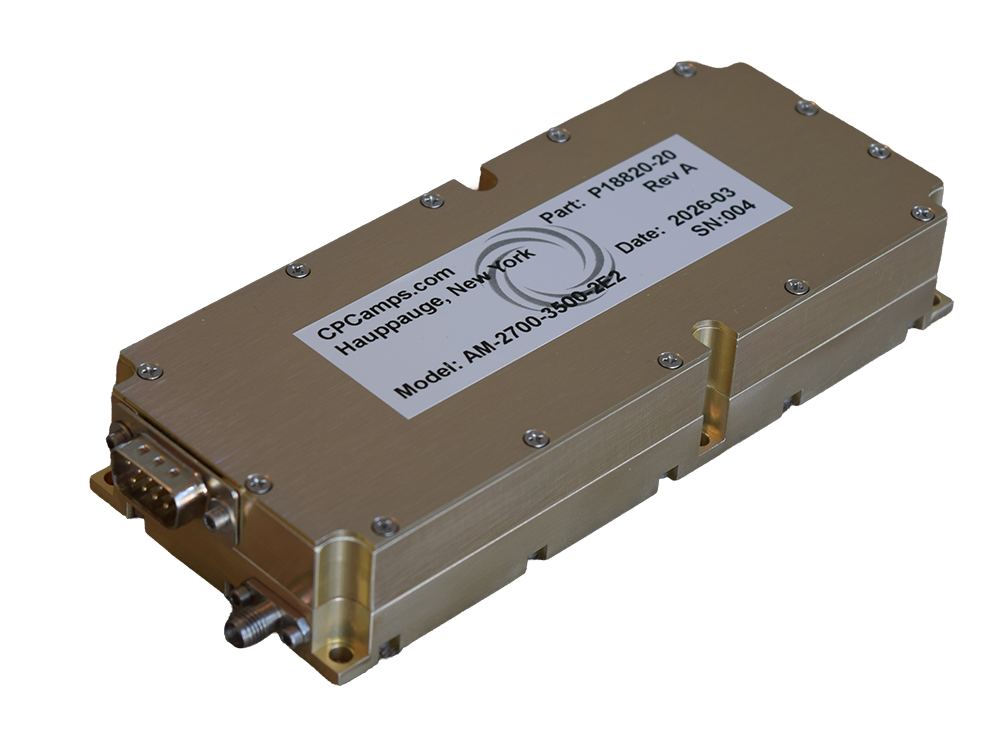

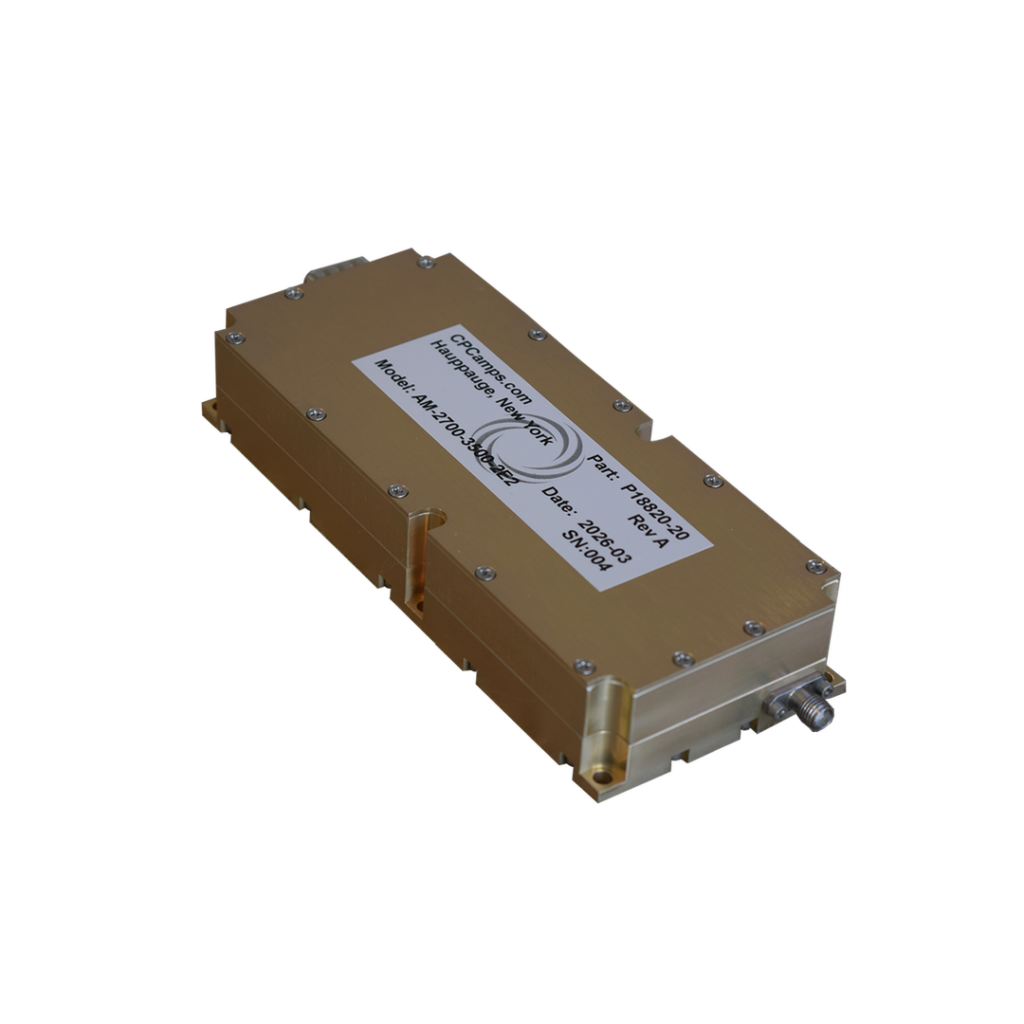

S-Band Power Amplifier Module
Pulsed RF system requirements are now easily met with CPC Amps’ S-Band Solid State Power Amplifier. Delivering high power and gain in a small form factor, the Amps are ideal for pulsed applications, including Radars, Radar Test Equipment, and EW Systems.
Built in a rugged, low-profile, connectorized housing, the unit delivers superior performance in a small form factor, allowing for easy incorporation into systems. Efficient design and smart packaging simplify managing thermal dissipation
Freq Range: 2700-3500 MHz
Power Output: 200 W
Pulsed Operation
