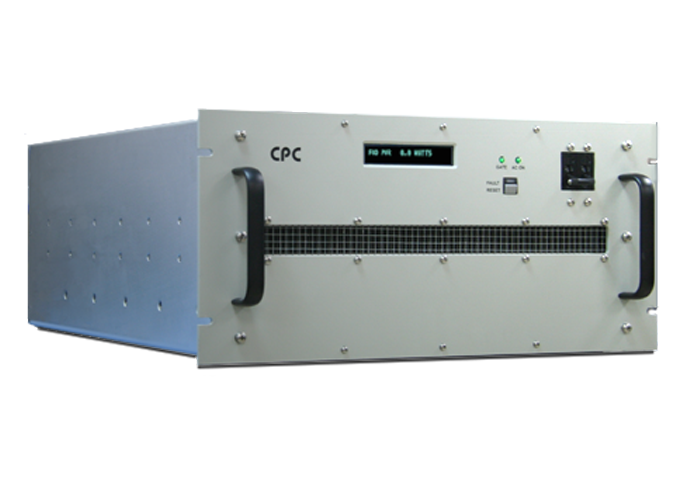

Particle Accelerator RF Power Amplifiers
Developed to seamlessly integrate into Particle Accelerators
- Amplifiers available in broadband class A/AB or narrowband Class D/E
- Power levels up to 20 kW
- CW and Pulse Operation
- Standard and custom designed systems
Product Overview
CPC’s Particle Accelerator Amplifiers support a broad range of scientific accelerator installations.
CPC Amps are available in broadband class A/AB designs. These bandwidths can cover several octaves anywhere in the frequency range of 1 MHz to over 2 GHz. CPC also provides Class D/E high efficiency RFPA technology under license from Green Mountain Radio Research (GMRR).
Key Capabilities
Wide Frequency Coverage – Operating frequencies from 10 to over 2000 MHz
High Power Output – Power Levels up to 20 kW or more achievable.
Superior Signal Integrity – High Linearity for minimal distortion with fast pulse rise times and minimal droop.
System Integration – Full interface monitoring and control for easy integration.
Typical Amplifier Configurations
Click on model number to view Data Sheet
| Model Number | Frequency Range (MHz) | Standard Power (W) | |
|---|---|---|---|
| AR-10-130-1E3 | 10 - 130 | 1000 | |
| AR-30-400-1E3 | 30 - 400 | 1000 | |
| AR-500-1000-1E3 | 500 - 1000 | 1000 | |
| PA200M07K | 200 +/- 1 | 7000 |
